Muscadine grapevines are tolerant of most insect pests, and seldom are insecticides warranted. Periodically, aphid outbreaks may occur on shoot terminals, but they seldom persist more than a few weeks due to the work of natural enemies. Chilli thrips (Scirtothrips dorsalis) can also cause significant economic damage if not controlled. The grape root borer (Vitacea polistiformis) is thought to be a significant pest of muscadine grapevine and may contribute to vine mortality, but good data on its economic impact are lacking. The adult is a moth that resembles a wasp and emerges and lays its eggs at a time of the year dependent on latitude. The larvae bore into roots at the base of the trunks and damage vines by consuming root tissue. An in-row strip maintained weed-free by the use of herbicide is thought to minimize the density of grape root borers in the root. Also, a soil insecticide can be used to control this pest. Monitor and watch for the emergence of the adult insects so that you can time the application of insecticide. ⁴

Grape Root Borer
Vitacea polistiformis (Harris)

The grape root borer (Fig. 1) is the most serious threat to grapes in Florida (Liburd and Seferina 2004). It is a member of the moth family Sesiidae. Adults are brown moths with thin yellow bands on the abdomen and resemble some paper wasps. The front wings are brown while hind wings are transparent. The eggs hatch on the soil surface and the larvae tunnel into the root system. Borer damage causes reduced vine growth, smaller leaves and reduced berry size. Because damage is restricted to below-ground, problems often go unnoticed until the vines start to die. Damage ranges from just a few feeding sites to complete root destruction. Grape root borer presence can be determined by detection of shed pupal skins at the base of the vines. ¹


Fig. 2	Fig. 3	Fig. 4	Fig. 5

Fig. 2. Grape root borer pupa(e)
Fig. 3. Larva(e) and galleries in grape rootstock

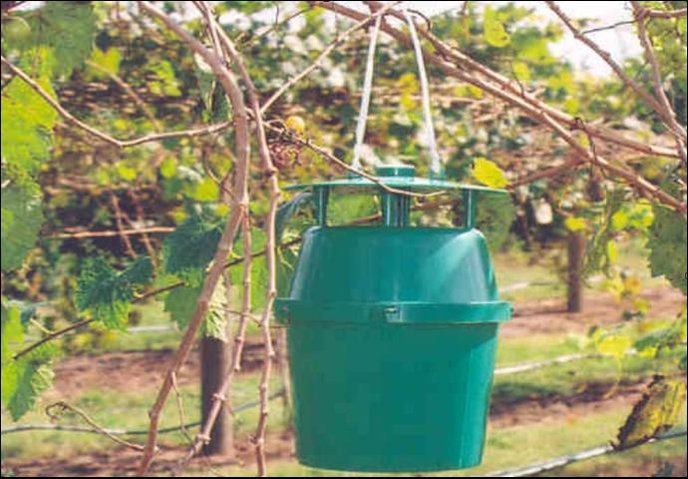

Fig. 5. Grape root borer trap

Further Reading
Grape Root Borer, Extension.org ^pdf

Grape Leaf Skelletonizer (Fig. 6)
Harrisina americana (Guérin-Méneville)

This species is common throughout Florida, with the possible exception of the Keys, and it ranges widely in the eastern half of the United States. It is noticed primarily because of its defoliation of grapevines in home gardens. ¹
Initial symptoms include the appearance of brown, necrotic, skeletonized leaf tissue, resulting from young larvae eating some but not all layers of the leaf. Later instars devour the leaf, leaving only a few large veins. Larvae attract attention by feeding in groups, usually side by side in a row. Grapeleaf skeletonizer is a minor pest in Florida. Vineyards receiving regular treatment for important grape pests are not troubled with skeletonizers. ³


Fig. 7	Fig. 8	Fig. 9

Partial skeletonization of 'Lake Emerald' grape leaf by larvae of the grapeleaf skeletonizer

Fig. 10

Fig. 7. Larvae of the grapeleaf skeletonizer, H. americana (Guérin-Méneville), feeding on a grape leaf
Fig. 8. Larvae of the grapeleaf skeletonizer, hatching from an egg cluster on a grape leaf
Fig. 9. Underside of 'Lake Emerald' grape leaf, showing considerable damage by young larvae of the grapeleaf skeletonizer: (A) = remains of egg mass, (B) = young larvae
Fig. 10. Partial skeletonization of 'Lake Emerald' grape leaf by larvae of the grapeleaf skeletonizer

Further Reading
Grape Leaf Skeletonizer, Harrisina americana (Guerin-Meneville), University of Florida ^pdf

Grape Leffloder (Fig. 11)
Desmia funeralis (Hubner)

The grape leaffolder is a common and widely distributed species that is a minor pest of grapes in the United States. In Florida the grape leaffolder has done substantial damage to grape leaves in September and October when growers have discontinued their spray programs after harvest. Excessive defoliation may deplete the food reserves in the vine sufficiently to reduce the size of the next crop. ²
Injury to the leaves is very characteristic and may be easily recognized. As soon as a larva is large enough it folds the leaf, exposing the under surface; the edge is held in place by bands of silk thread. It is within the protection of this fold that the larva feeds, skeletonizing the leaf of the upper surface. ²


Fig. 12	Fig. 13	Fig. 14

Fig. 12. Damage to bunch grape foliage caused by the grape leaffolder
Fig. 13. Damage to muscadine grape leaf with characteristic roll caused by the grape leaffolder, D. funeralis (Hübner), also showing silk strands

Further Reading
Grape Leaffloder, Desmia funeralis, University of Florida ^pdf

Glassy-Winged Sharpshooter (Fig. 15)
Homalodisca vitripennis Girault

This leafhopper is native to the southeastern United States. The glassy-winged sharpshooter feeds on grapevine stems as opposed to leaves. Females lay eggs in groups of 10-20 on the underside of leaves, just under the surface. The glassy-winged sharpshooter vectors the bacterium Xylella fastidiosa, which causes Pierce's disease in grapes. Pierce's disease is considered the most serious threat to viticulture throughout the United States. It is the single most formidable obstacle to the growing of European-type (vinifera) grapes. Early symptoms of Pierce's disease include wilting, which is caused by bacterial growth that blocks the flow of xylem in affected plants (Brlansky et al. 1983). Subsequent damage includes discolored leaf margins, shrivelled fruit, leaf drop, and irregular maturation of new canes. ¹


Fig. 16	Fig. 17


Fig. 18	Fig. 19	Fig. 20


Fig. 21	Fig. 22

Fig. 16. Neonate nymph (upper right) and egg mass (left center) of the glassy-winged sharpshooter, H. vitripennis
Fig. 18. Adult glassy-winged sharpshooters feeding on holly

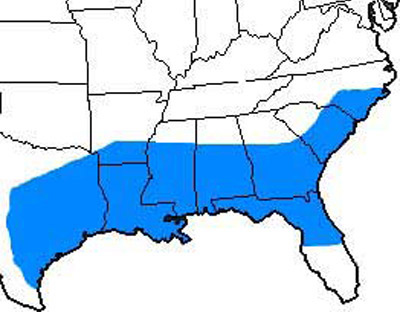

Fig. 19. Distribution of the glassy-winged sharpshooter in the southeast United States as of 2004

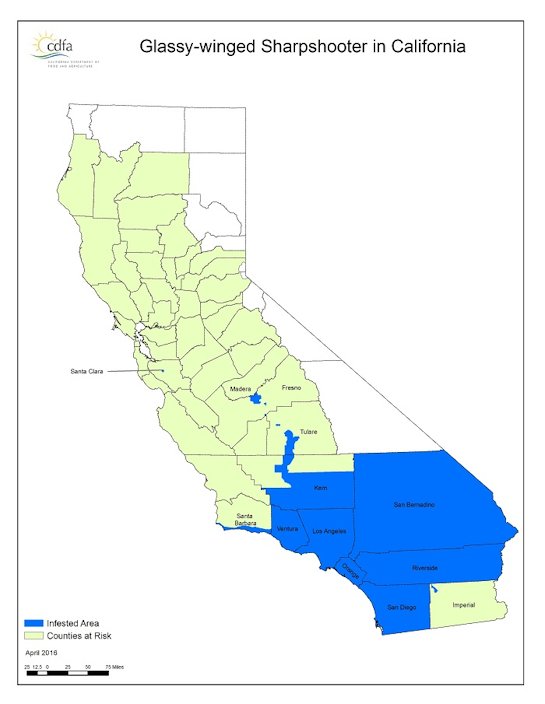

Fig. 20. Distribution of the glassy-winged sharpshooter in California
Fig. 21. Gonatocerus triguttatus, a parasititoid wasp lays its eggs in glassy-winged sharpshooter eggs embedded in leaves, two new wasps, G. tuberculifemur and G. metanotalis, have recently been found to attack this sharpshooter's egg
Fig. 22. Egg mass of the glassy-winged sharpshooter parasitized by G. triguttatus

Further Reading
Glassy-Winged Sharpshooter, Homalodisca vitripennis (=coagulata) (Germar), University of Florida ^pdf
Xylella Fastidiosa Diseases and Their Leafhopper Vectors, University of Florida ^pdf

Grapevine Aphid (Fig. 23)
Aphis illinoisensis (Shimer)

Aphids feed on the young shoots and leaves of grape plants, but more serious injury results from the infestation of the developing fruit clusters. Both the winged and the wingless morphs are found feeding on the succulent part of the plant. Very high population will retard the plant and may also cause the berries to drop. Dry weather contributes to the growth of aphid populations. The grapevine aphid is usually not important enough to necessitate specific treatments. ¹

Grape Curculio (Fig. 24)
Craponius inaequalis (Say)

This curculio has been reported throughout eastern North America. An occasional pest of mature grape berries, the adult grape curculio is a foliage feeder, leaving a characteristic zigzag pattern on the undersurface of grape leaves (McGiffen and Neunzig 1985). It lays eggs in the berry, where larvae feed on the fruit as well as on the seeds. They are distinguished from the caterpillars of the berry moth, another grape berry feeder, by their lack of true legs. Proper orchard sanitation is usually adequate to prevent significant infestations. Pesticide applications are required whenever the insects or damage are present. ¹

Fig. 25

Grape Phylloxera, vine louse (Fig. 28)
Daktulosphaira vitifoliae (Fitch)

Grape phylloxera is native to North America and occurs in many wild species of grapes in Florida as well as other areas of the southeastern United States. Bunch grapes (‘Blanc DuBois’, and ‘Conquistador’) varieties were observed to be more susceptible as compared to four muscadine varieties (‘Carlos bronze’, ‘Noble black’, ‘Triumph Bronze’, and ‘Alachua black’). The presence of grape phylloxera is easily recognized due to the characteristic galls that develop on the leaves. Leaf (aerial) phylloxera does little harm and does not necessarily take up residence in all Florida vineyards. These galls also occur on the roots but they are not readily apparent. Root galls are small knots (enlarged areas) on the roots, which interfere with the roots' ability to absorb water and mineral salts (Flaherty et al. 1992). An aphid-like insect is responsible for causing the symptoms of grape phylloxera. Many native American grapes are tolerant or resistant to root attack and are used as rootstocks for European grapes in other parts of the country. ¹


Fig. 27	Fig. 28	Fig. 29

Fig. 30

Fig. 27. Adults, juveniles and eggs
Fig. 28. Cross section of grapevine leaf gall caused by Viteus vitifoliae
Fig. 29. Grapevine phylloxera, root galls

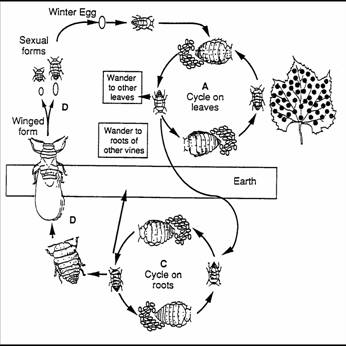

Fig. 30. Life cycle
