From the Archives
of the Rare Fruit Council of Australia
Jakfruit in the Philippines, Part I
Scientific Name: Artocarpus heterophyllus
Family: Moraceae
Acknowledgement: Promising Fruits of the Philippines by Roberto E. Coronel
Introduction The jak (Artocarpus heterophyllus
Lam.) is one of the most widely grown fruit crops in the Philippines.
It is also one of the most famous in the world because it produces the
largest edible fruit that may weigh as much as 50 kg. It is also a
unique tree because it is reported to produce fruits below the ground
level. Although the jak fruit is very much liked in the tropics, many
westerners find its flavour quite peculiar and its aroma too strong.
Primarily
grown in the backyard for local consumption, the jak has great export
potential and may be developed as an orchard crop. For local
consumption, the ripe fruit is usually used for dessert while in some
regions in the Philippines, the green fruit is much relished as a
vegetable. For export, the ripe pulp may be preserved in syrup or
dehydrated. The non-edible portion ('rags') is very rich in pectin and
is an ideal material for making jelly.
In 1978, jak ranked fifth
among local fruit crops in terms of total area planted and quantity of
production. The Philippines has an average area of 13,540 ha planted to
jak. With 1,237,200 bearing trees, production is 93,735.1 tons. The jak
is grown all over the country but the leading regions in terms of
hectarage are Western Visayas (3,456 ha), Bicol (2,000 ha), Central
Visayas (1,930 ha), Southern Tagalog (1,910 ha) and Eastern Visayas
(984 ha). The other 7 regions have 112-892 ha each planted to jak.
Origin and Distribution The
jak is a native to the rain forests of the Western Ghats of India, but
is now widely cultivated throughout the tropical lowlands of both
hemispheres. It is an important fruit crop in India, Burma, Sri Lanka,
Malaysia, Indonesia, Thailand, the Philippines and many other tropical
countries.
The jak was introduced into the Philippines during
the pre-historic period. It is now widely distributed throughout the
country both cultivated and wild at low and medium elevations.
Taxonomy and Nomenclature The
jak, belongs to the Moraceae, or mulberry family. This family comprises
about 55-67 genera and 900-1,000 species of mostly tropical herbs,
shrubs, trees and sometimes vines, with 13 genera and about 150 species
in the Philippines. The genus Artocarpus Forst. includes 50 or more
milky-juiced species of Asiatic tropics and Polynesia with 17-18
species found in the Philippines. India has 18 species. The generic
name was derived from the Greek words Artocarpus, meaning 'bread
fruit'. The common name 'jak' was given by the Portuguese from the
Indian name maka or tsjaka. Jak is known locally as Langka or nangka
which is of Malayan origin. It is also called badak in Cagayan and saga
kat in the Mt. Province.
The genus Artocarpus also contains other species bearing edible fruits such as rimas, A. altilis (Park.) Fosb.; kledang, A. lancifolia Roxb.; mandalika, A. rigidus Blume.; kamansi, A. camansi Blanco; and bumihan, A. elasticus Reinw. ex Blume. Corner stated that the right botanical name for chempedak is A. integer (Thunb.) Merr. and that A. champeden refers to a Cochin Chinese species different from chempedak.
The
Bureau of Agriculture first introduced chempedak into the Philippines
in 1912 from China and then in 1913 from Singapore but both
introductions failed. It was again introduced in 1914 or 1915 from
Singapore and fruited for the first time in Lamao, Limay, Bataan in
1920. The U.P. College of Agriculture at Los Baños, Laguna, introduced
chempedak from Indonesia in 1913 and, again in 1927 from Borneo.
Horticulturally,
chempedak closely resembles jak but the former has less latex, its pulp
is superior in quality and is easily separated from the core, and it is
more resistant to fruitfly. Its fruit, however, is smaller and much
more odorous than jak fruit. Corner observed that botanically jak and
chempedak differ in 14 characters, namely: (a) shape of the base of the
leaf lamina, (b) colour of fresh leaf, (c) size of male inflorescence,
(d) presence or absence of annulus at the base of the inflorescence
head, (e) size of male flower, (f) shape of style apex, (g) adherence
of wall and core of ripe syncarp, (h) texture and shape of fruiting
perianth, (i) structure of fruiting pericarp, (j) size and attachment
of style in the fruit, (k) attachment and shape of seed, (1) structure
of testa, (m) dissimilarity of cotyledons, and (n) position of radicle.
The jak is also botanically related to fig, Ficus carica Linn.; mulberry, Morus alba Linn.; chesang, Cudrania tricuspidata Bu.; and yaruma, Cecropia palmata Ww.

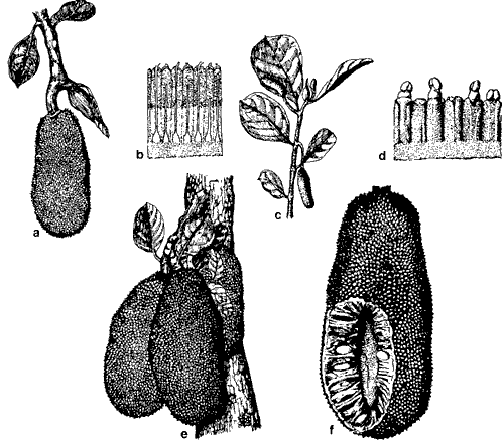

Botanical Description Several
authors have described the jak plant and its parts. It is a small to
medium-sized, evergreen tree that reaches 8-15 m high. It has a
straight, cylindrical, low-branched trunk that measures 30 - 100 cm in
diameter and a dense, irregular or spreading crown. The thick
greyish-brown bark exudes a viscid and milky sap when injured. The
leaves are alternate, spirally arranged, petioled, stiff and leathery,
elliptic oblong or obovate in shape, broadest near the tip, with
pointed apex and base, entire or three-lobed in the juvenile stage, and
measure 10-15 cm long and 5-10 cm wide. They are dark green, and shiny
above and pale green and glabrous beneath. The petioles are hairy and
2-4 cm long. The young leaves are pale yellowish-green.
The jak
is a monoecious species and the male and female inflorescences or
spikes are in separate parts of the plant. The female spikes are
solitary or in pairs on special leafy shoots (footstalks) that grow out
of the trunk and large branches or occasionally from exposed roots of
old trees. They are larger, 5-15 cm long, cylindrical or oblong, dark
green, with a stout annulus, 3.0 - 4.5 cm wide at base and embraced by
spathaceous, deciduous, stipular sheaths, 5-8 cm long. The peduncles
are stout and 8 - 9 mm wide. The female flower is tubular, cohering
except at base and apex, the apical part projecting as a 3 - to
7-gorous, blunt or acute cone or pyramid traversed by the style. The
style has projecting apex, spathulate or ligulate, and slightly curved.
The stigma is clavate. The male spikes are deciduous, much more
numerous, densely crowded, cylindric or clavate, 3 - 7 cm long, 2.5 cm
in annulus, 1.5 - 2.5 mm broad, at base. The peduncle is stout, 1.5 - 5
cm long and 4 - 5 mm wide. The male flower is fragrant and its tubular
perianth is 1.0 - 1.5 mm long and slightly hairy. The single stamen is
1.5 - 2.0 mm high with a broad filament and short anther.
The
fruit, technically called a syncarp, is very large, 25-60 cm long, 25 -
50 cm in diameter and may weigh 35 - 50 kg, oblong ellipsoid to
pyriform in shape, and covered with short, pyramidal spines. This
multiple fruit consists of a greatly enlarged fleshy receptacle and
numerous carpels which have fused together, with the interior covered
by a thick rind. The pericarp and the pulp around the large seeds are
the edible portions. The pulp is thick, rich yellow, sweet and very
aromatic. The seeds are numerous, with more or less unequal cotyledons,
and vary in size from 2.5 - 4.0 cm long and 1.1 - 2.3 cm wide. The
testa is thin and coriaceous.
Varieties Partly
because the jak seedlings bear fruits earlier than seedlings of other
fruit trees and that the jak itself is quite difficult to propagate
asexually, the most common method of propagation is by seeds. However,
because this species is open-pollinated, there is considerable
variability in shape, size, quality and other fruit characters among
seedling progenies. The pulp character may range from sweet, juicy and
aromatic to nearly dry and acidulous.
In India, the jak forms
are grouped into 2 based on pulp characters: (a) soft and melting pulp
and (b) hard and crisp pulp. Six varieties with soft and melting pulp
and two varieties with hard and crisp pulp have been described. In
South India, the popular varieties include 'Kapa' with sweet, crisp
pulp and 'Barka' with thin, mucilaginous, sour pulp. A promising
precocious jak variety, 'Mutton Varikkha' has also been described and
is being propagated as a clonal variety by marcotting and inarching. In
India and Sri Lanka, the 'Singapore' jak has been introduced. This is
an early-maturing variety that bears fruits in about 18 months in the
plains and 24 months in the hills. In addition, the fruits generally
mature in large number during the off season. Thus, by planting this
variety and the ordinary type, it is possible to harvest fruits nearly
all year round.
In the Philippines, there are also numerous
seedling trees which show distinct variations and three forms have been
observed at Los Baños, Laguna. On the whole, however, not many studies
have been done on varietal improvement and on the description of
varieties. In Thailand and Malaysia, selection for outstanding jak
trees has been made and the outstanding trees have been propagated
asexually.
In Malaysia, and even in the Philippines, some jak
trees have been reported, although very rarely, to bear fruits on their
roots. These fruits developed on adventitious root suckers. They
developed underground and as they increased in size they raised small
mounds which they eventually burst, thus disclosing themselves.
However, no botanist has ever seen such a tree to verify the reports.
In
the Philippines, the production of plants bearing jak characters from
seeds of a chempedak tree has been reported. This provides evidence of
the existence of natural hybridization between the two species and this
is considered a hindrance to rapid propagation of chempedak and
popularization of its culture. Obviously, to maintain the chempedak
characters, outstanding chempedak trees should be propagated asexually.
Soil and Climatic Adaptations The
jak thrives best in moist tropical climates below an elevation of 1000
m in areas with well-distributed rainfall. It is probably the most
cold-tolerant species in the genus, as trees have produced fruits in
southern Florida, although they have been at times seriously injured by
frosts. In the Philippines, it grows well on all climatic types
although a warm, wet surrounding is best.
The tree grows well on
almost any type of soil. But for best performance it prefers a deep,
well-drained, sandy or clay loam soils. While the soil moisture must be
kept always at a high level, the tree cannot tolerate water stagnation
and ill drainage.
Nursery Practices
Seed Preparation and Germination The
seeds for planting should be obtained from outstanding mother trees. A
fruit may contain 100 - 500 seeds, majority of which weigh 3.6 g each.
There is no apparent correlation between fruit size and seed number.
After extraction from the fruit, the outer covering (perianth lobes) of
the seeds is removed as this lowers seed germination; the seeds are
thoroughly washed in water to remove all the slimy material. Only large
seeds from a fruit should be selected for planting, because studies
conducted in India have shown that large, heavy seeds have higher
germination, retain their viability longer, sprout earlier and produce
healthier seedlings than small, light seeds.
The jak seeds do
not remain viable for a long period when exposed to the elements and
should be sown immediately after extraction from the fruit. Germination
tests conducted in India have shown that seeds may remain viable for
one full month even under ordinary storage conditions, but germination
percentage decreases somewhat and sprouting time increases with
lateness of sowing. For example, fresh seeds germinate in 32 days while
month-old seeds germinate in 45 days. Thus, it is still advisable to
use fresh seeds. If the seeds cannot be sown right away, they should be
placed in moist coir dust, sawdust or sphagnum moss. In any case, the
cotyledons should not be allowed to dry and shrivel as this will cause
the seeds not to germinate.
In studies conducted in India,
soaking the seeds in water 24 hours prior to sowing has been observed
to increase sprouting and to reduce germination time. It has also been
observed that the germination percentage of the jak seeds soaked in NAA
solution for 24 hours, the seedling height and leaf number, decrease
with increasing NAA concentrations from 25 - 200 ppm. Percent seed
germination and seedling height at 25 and 50 ppm NAA and leaf number at
25 ppm NAA were better than in the control. Soaking seeds in 25 ppm NAA
for 24 hours prior to sowing was therefore recommended. In another
study, it was found that seeds soaked in 100 - 500 ppm GA solution for
24 hours gave 100 percent germination. Seeds treated with 500 ppm GA
produced twin seedlings. The other growth regulators had no marked
effect on seed germination. Chlorophenoxyacetic acid (CPA) caused
splitting of cotyledons and thus, damaged the seeds.
Jak
seedlings have a long taproot system which is very sensitive to injury
and thus, do not withstand transplanting well. For this reason, it is
advisable to sow the seeds in individual containers or directly in
situ. If seeds are to be started first in seedbeds, the seedlings
should be transferred to individual containers before the food reserve
in the cotyledons is exhausted. Otherwise, there is a poor chance that
they will recover from the shock of transplanting. In coffee
plantations in India where jak is used as a shade tree, jak seeds are
sown directly in the field. Three seeds are planted at the centre of
the hole. Later, the 2 weaker seedlings are removed, leaving only the
healthy and straight one to develop.
The seeds germinate earlier
if they are sown either horizontally or with their embryos pointing
downward. On the average, seeds germinate in about 18 days although
germination occurs over a period of 2 months. Jak seeds are usually
monoembryonic although rare cases of seeds producing 2 or more
seedlings have been reported.
Care of Seedlings Growth
of jak seedlings is rather slow during the first year. Plants increase
in height by about 2 - 3 cm per month and new leaves take about 12 days
to fully expand to normal size. For more rapid growth, they may be
planted in clay loam soil mixed with compost or other source of organic
matter and should be watered regularly. They may be fertilized every
2-3 months with a small amount of nitrogen-containing fertilizer.
Seedling growth may be accelerated by spraying them with 25 - 100 ppm
GA. Although they can tolerate full exposure to sunlight, they should
be placed in a partially shaded area.
Propagation The
jak is commonly grown from seeds, although vegetative methods of
propagation have been tried with varying degrees of success. In many
countries, propagation by seeds is still the cheapest, easiest and most
convenient method available. However, plants grown from seeds exhibit a
high degree of variability so that different forms and qualities of
fruits exist. For this reason, superior trees should be propagated
asexually.
The jak may be propagated asexually by marcotting,
inarching, budding and grafting. The earliest marcotting trial in the
Philippines has shown that branches that are 3.0 - 4.5 cm in diameter
produce roots in 171 days. Another local study has shown that branches
form callus within 23 - 26 days and produce roots within 98 - 111 days.
In india, a marcotting trial using 10-year-old branches 1.4 - 1.8 cm in
diameter has shown greater rooting and survival of marcots using NAA.
Rooting is more profuse in marcots treated with 0.025 percent NAA
solution which may be responsible for greater survival.
Marcots
are ready for transplanting in 3 months. In another trial in India
using different growth regulators, 1 percent IBA has been found to be
the most effective in marcotting branches 1.0 - 1.5 cm in diameter.
Such treatment produces 100 percent success, induces the branches to
root in only 22 days, and gives more and longer roots. Similar
favourable results have been obtained when IBA is applied in
combination with either NAA or IAA. The fact that IAA-NAA mixture has
not produced favourable response suggests that only the IBA in the
mixture causes the response. Greater response is obtained when
marcotting is done during the rainy season. While marcotting appears to
be an effective method of propagation and gives a relatively high
success, the problem of establishing newly-marcotted plants makes this
method not easily accepted for widespread use. Inarching, like
marcotting is suitable for small scale jak propagation. Its advantage
over marcotting is that establishing inarches is not a problem. In
India, inarching has been found 84 percent successful using jak
seedlings as rootstocks. This method is also practiced to a large
extent in Thailand. In the Philippines, interspecific
graft-compatibility studies have shown that jak seedlings can be used
successfully as rootstocks for inarching rimas and chempedak. Patch
budding is the method commercially used in propagating jak in Malaysia.
In India, patch budding has given the best results of the different
budding techniques tried. This method gives very high success in May to
June (as high as 100 percent success in June), because during these
months both the scions and stocks are in active stage of growth. In Sri
Lanka, budding by the modified Forkert method using jak seedlings as
rootstocks budwoods from previous season's growth is practiced. In the
Philippines, chempedak has been successfully shield budded on jak
seedlings. Budding, it appears, may be done any time of the year
as long as the stocks are kept in active growth. Best rootstocks are 8
to 11 month-old chempedak seedlings although jak and mandalika
seedlings may also be used. Although there is no published
report on grafting jak, this method is nevertheless used to a limited
extent in the Philippines. At the Bureau of Plant Industry's Mandaue
(Cebu) Experiment Station, cleft grafting is used. There is a need, it
appears, to cure the budstick and rootstock before cleft grafting is
done. One-year-old, brown budsticks are collected and buried in an
inverted position in moist sand or soil a day before grafting. The
rootstock is headed back a day before. This practice, it is claimed,
reduces the amount of latex in the parts of the stock and scion that
will be joined and increases the chance of success. All cuttings
failed to root in studies on propagating jak by stem cuttings in the
Philippines. Similar results have been obtained in India despite
treating the cuttings with hormones. Cultural Practices
Land PreparationBefore
the planting materials are set in the field, the land intended for
planting should be prepared in some way. For backyard planting, land
preparation is very simple and consists of digging holes large enough
to accommodate the ball of soil that goes with the planting materials.
If the land is covered with second-growth forests, the trees should be
cut down and the stumps removed or burned. No additional land
preparation is necessary. For medium to large scale planting in the
open, the soil should be plowed and harrowed several times until the
desired soil tilth is attained. The land should be prepared before the
onset of the rainy season to thoroughly expose the soil before planting. PlantingAs
stated earlier, the jak seedlings are very sensitive to root injury
during transplanting. During seedling development in the nursery, the
primary root should not be allowed to penetrate through the container
and to establish itself in the soil. If this happens the root will have
to be cut during transplanting in the field. This would result in
additional injury to the plant and would further slow down its
recovery. To minimize this problem, the seedlings should not be allowed
to grow too big in the nursery. They should be planted in the field
when they are about 1 year old or younger. During transplanting,
great care should also be observed in removing the plants from the
containers so as not to injure the roots and disturb the soil in which
the roots are growing. If polybags are used as containers. the problem
could be minimized by cutting only the bottom of the container. The
plants are carefully set in the previously prepared holes which are
later filled up with topsoil mixed with compost. The soil is pressed
down around the base of the plant to remove large air spaces. The
leaves should be pruned in halves and the extra shoots cut to reduce
transpiration. Pruning may be done while the seedlings are still in the
nursery or before the plants are set in the holes. In India, the stem
of the newly-transplanted seedling is wrapped with banana sheath to
protect it from sunscalding. Jak (Artocarpus heterophyllus
Lam.) a. Shoot with female inflorescence, b. section of female
inflorescence, c. shoot with male inflorescence, d. section of male
inflorescence, e. fruiting habit, and f. fruit with interior shown.
Jakfruit in the Philippines, Part II Jakfruit in the Philippines, Part III
Back to Jackfruit Page
|
|
